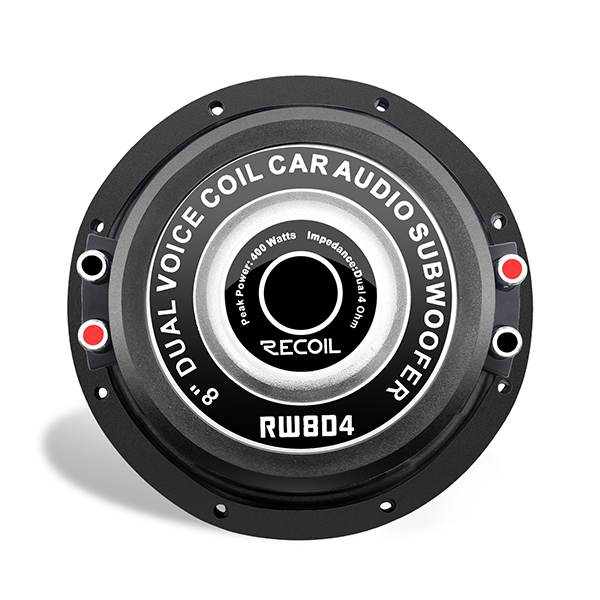

RW8D4
Edge Echo series 8-Inch Dual 4-ohm Car Subwoofer, Peak Power: 400 Watts | RMS Power: 200 Watts

The 2-Inch 4-Layer black aluminum voice coil is designed for sound and wiring flexibility, efficient thermal heat management, high-strength construction, and high-temperature. They are coated with black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated.

High strength pressed paper cone is super thick and strong. And the NBR surround provides incredible sound quality with minimal distortion, black stitching reinforces the cone and ensures long life.

It utilizes an advanced air flow cooling structural design for heat dissipation, which optimizes performance even further.

Custom Edge basket, Custom magnet cover, Custom Edge mounting gasket makes it easy to mount the subwoofer Air-Tight.
Product descriptionSpecficiation
MODEL
RW8D4
MODEL
8"(200mm)
DCR(Ω)
3.6+3.6
Frequency Response(Hz)
50-1.8K
Voice Coil Diameter
2" 50.8mm
Power Rating(RMS/Peak)
200W/400W
Fs - Free Air Resonance
36.8HZ
Qts
0.52
Qes
0.58
Qms
4.78
Vas(L)
16.6L
Sensitivity (1W/1M)
83
Xmax(mm)
8.5
Material Description

FRAME
Steel
Magnet(OZ)
34
Cone
PRESSED PAPER
SURROUND
NBR
Voice coil 
ASV
Crossover Point(Hz)
N/A
Tweeter Diaphragm
N/A
