AF6

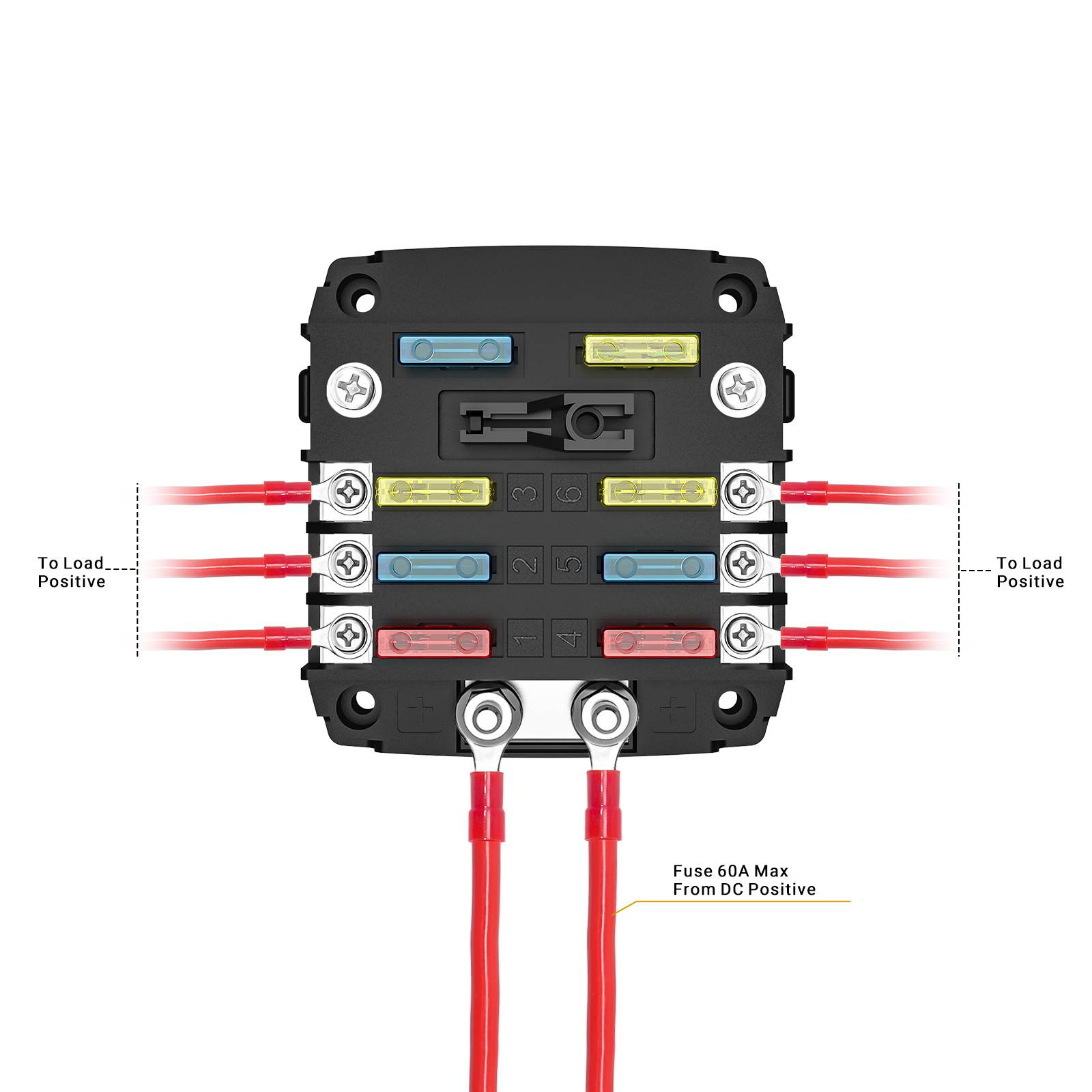

Edge fuse block offers a space saving and cost-effective solution to adding circuit protection. This 6-way ATC/ATO fuse block allows you to supply power to your new accessories without compromising your stock wiring. It is perfect for cleaning up the wiring on your car, truck, boat or any vehicles. It comes with 6 fuse protected terminals for up to 60 amps of power, tin-plated copper components for improved conductivity and corrosion resistance.

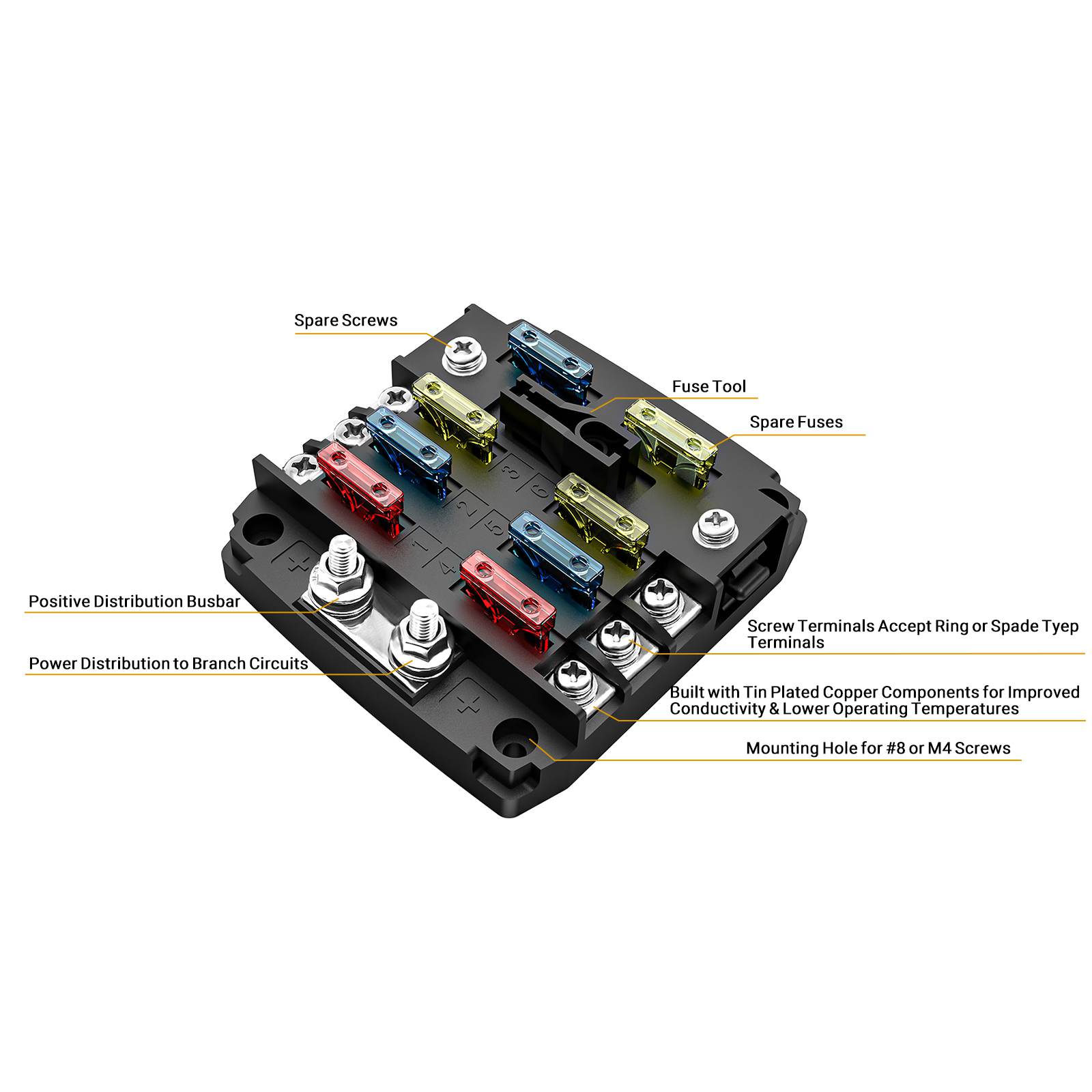

6-circuit fuse block
Accepts ATO® and ATC® fast acting blade fuses
Tin-plated copper buses and fuse clips for maximum power transfer
Positive distribution bus with #10-32 studs
Accepts ring or snap fork type terminals
Polycarbonate cover incorporates easy-to-open push button latch providing easy access to fuses
Two spare fuses, two spare screws and fuse tool are included for easy replacement in field
Include circuit labels
Specficiation
Model
AF6
Circuits
6
Fuse Type
ATC/ATO-ACU
Maximum Amperage
100A per block / 30A per circuit
Maximum Voltage
32V DC
Positive Busbar
#10-32 Studs
Busbar Material
Nickel Plated Brass Plate
Base and Cover Material
Polycarbonate
Input Terminal
M5 Studs
Dimension
92.24*85*40.5mm
Weight
144.3g
Spare Fuse Slots
2
Spare Screws
2
Fuse Tool
Yes
Circuit Sticker Labels
2
Fuses Included
12pcs (20A*4, 15A*4, 10A*2, 5A*2)
Mounting Screws
4 * #8 Screw (M4)
