1. Versatile 5Channel Configuration
Drive your entire sound system with a single amplifier – use channels 1/2 for front speakers, channels 3/4 for rear fill, and channel 5 (or bridged) for a dedicated subwoofer. The Config switch lets you choose 2, 4, or 5pair RCA inputs, making integration with any head unit simple.

2. Massive Power for a Complete System
Drive your front, rear, and subwoofer with one compact amp: 80W×4 + 250W RMS @4Ω (CH14 + CH5), 140W×4 + 420W RMS @2Ω, and a dedicated 600W RMS @1Ω on the sub channel (CH5). That’s clean, headroomrich power that brings your music to life – no need for a separate mono block.

3. CrystalClear Sound with UltraLow Distortion
With frequency response from 20Hz to 20kHz, SignaltoNoise Ratio ≥90dB, and THD ≤0.5%, this amplifier delivers accurate, detailed audio across the entire spectrum. You get studiograde clarity whether you’re playing deep bass or crisp highs.

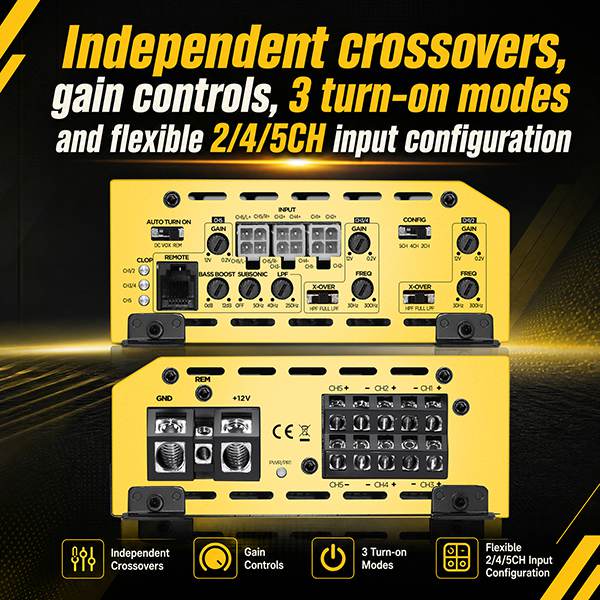

4. Precision Crossover & Gain Control
Each channel pair features independent HPF / LPF / FULL selection with adjustable frequency knobs. Block unwanted frequencies to protect your tweeters (HPF) or send only the low end to your subwoofer (LPF). Dedicated gain controls for CH5, CH3/4, and CH1/2 let you finetune the output to match your head unit perfectly.

5. BuiltIn Clip Indicator & Smart Protection
The CLIP LED warns you the moment distortion appears, so you can adjust gain for maximum clean output. The amp also includes overload protection and overheat shutoff – plus it passes the shortcircuit test, giving you peace of mind during long, harddriving sessions.

6. Flexible Installation & Smart TurnOn Options
Choose from REM (12V trigger), DC (highlevel signal sensing), or VOX (audio frequency sensing) – a lifesaver when upgrading factory radios without a remote wire. The 2/4/5pair input selector makes it compatible with virtually any source unit, and the compact chassis (8.27×4.92×2 in) fits easily in tight spaces.
