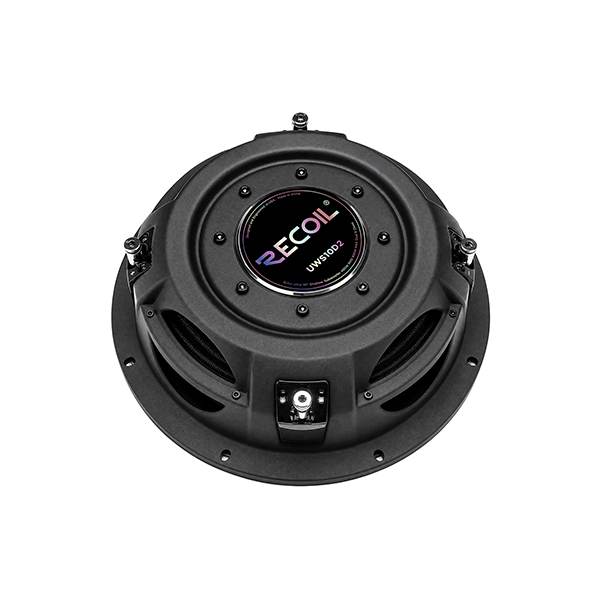

Edge UWS10D2 10" Shallow Mount Subwoofer, Dual 2 Ohm, 400W RMS / 800W Peak, 3.3" Mounting Depth, Slim Car Sub for Tight Spaces, Truck & Compact Enclosures.

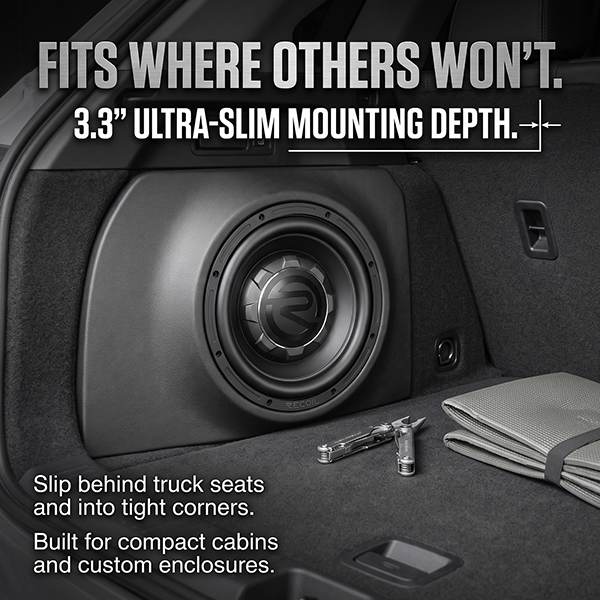

 FITS WHERE OTHERS WON’T — 3.3” ULTRA-SLIM DEPTH

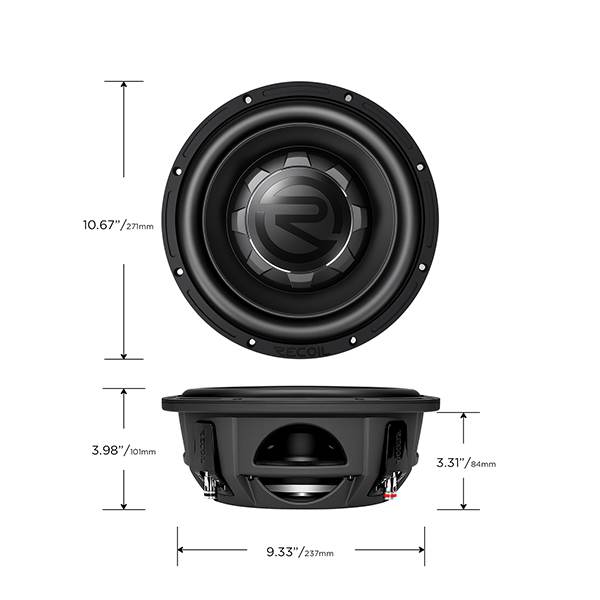

With a mounting depth of just 3.3 inches (84mm), the Edge UWS10 shallow subwoofer slips into tight spots that reject conventional 10-inch subs — behind truck seats, in custom corner enclosures, or in compact car cabins where space is at a premium.

 400W RMS / 800W PEAK — REAL POWER FOR REAL BASS
Don’t let the slim frame fool you. The UWS10 handles 400 watts RMS and 800 watts peak, giving you enough headroom to pair with a serious amplifier and still deliver controlled, authoritative low-end without strain.

 SURPRISINGLY DEEP BASS FROM A SMALL SEALED BOX
Optimized for compact enclosures, the UWS10 works in a sealed box as small as 0.53 cu. ft. (15L); driver frequency response is rated 35–400 Hz. Per the manual’s sealed enclosure table, F3 is 51 Hz.. That means deep, usable bass without sacrificing your trunk, storage, or cabin space.


 DUAL VOICE COIL FLEXIBILITY — WIRE FOR YOUR AMP
Choose Dual 2Ω (UWS10D2) or Dual 4Ω (UWS10D4) to match your amplifier’s stable impedance load. Series, parallel, or mixed wiring gives you the flexibility to extract maximum output from your setup without upgrading amps.

 BUILT FOR DAILY DRIVEN BASS
Injection-molded PP cone, steel basket, ferrite magnet, and a 1.5-inch fiberglass-bobbin copper voice coil. The UWS10 is engineered for durability and consistent performance in real vehicle environments — heat, vibration, and volume included.

 TUNED FOR REAL VEHICLES, NOT LAB CHARTS
With Fs at 29.4 Hz (D2) / 34.8 Hz (D4) and Qts around 0.55, the UWS10 is designed to sound good in the cabin, not just on paper. It blends into your system with tight, musical response whether you’re running sealed or vented.

 RECOMMENDED SEALED & VENTED BOX SPECS INCLUDED
The manual provides build-ready enclosure dimensions for both sealed (0.53 ft³) and vented (0.85 ft³, tuned to 28.5 Hz) alignments, so you can build with confidence instead of guessing.
