DI600.1

Edge engineered the DI600.1 Class D mono-block subwoofer amplifier to be dominant in both power and reliability. The DI600.1D is 2-ohm stable and utilizes a wide array premium components that make it extremely powerful and reliable - such as its high speed MOSFET power supply and advanced PCB board layout. You'll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ, and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.




Class-D Mono-block Subwoofer Amplifier, 1200 Watts Max Power, RMS 600 Watts x 1@2Ohm; RMS 350 Watts x 1@4Ohm.
Featuring a high-speed MOSFET power supply, premium grade internal components, as well as 4-way protection circuitry, the amplifier will safely operate at the highest levels of performance for hours on end. Highly efficient heatsinks keep the amplifier cool with a sophisticated new look.

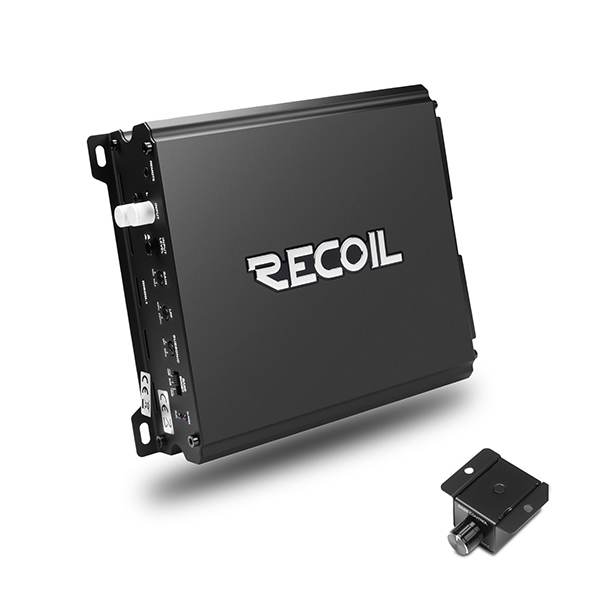

Edge mono amplifiers come with bass remote control. Use it to customize your bass on the fly with just a turn of a knob.

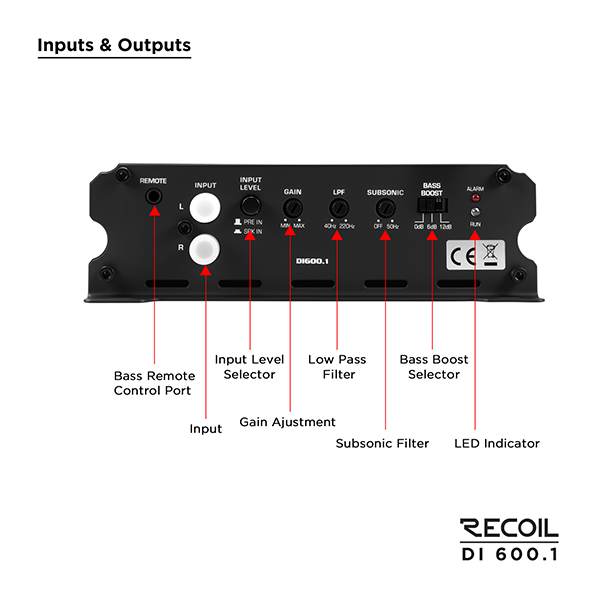

You'll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ, and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.
Dimensions: 7.48" x 5.90" x 1.77"

VideoSpecifications
ModelDI600.1

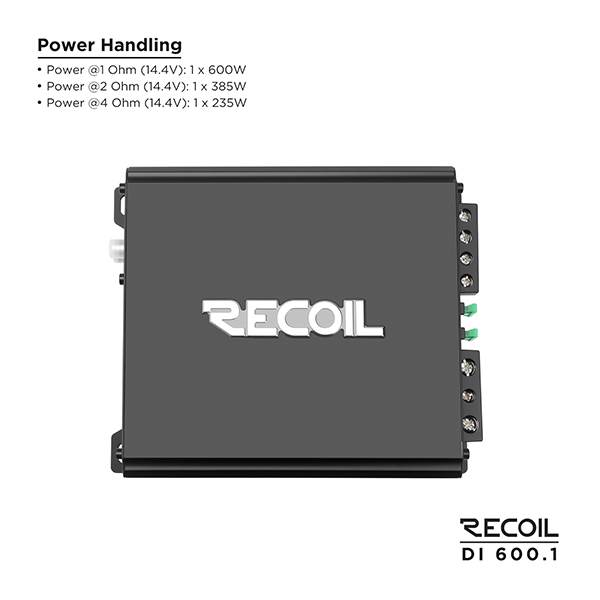

Power @1Ohm (14.4V)
N/A
Power @2Ohm (14.4V)
600W x 1
Power @4Ohm (14.4V)
400W x 1
Power (Bridged) @4Ohm (14.4V)
N/A
Operating Voltage
9V-16V
Idling Current (Power On)
900mA
Frequense Response
15Hz-220Hz
Signal to Noise Ratio (SNR)
85dB
THD+N (@1W)
<0.06%
Input Sensitivity(Low Level)
280mV-4V
Input Sensitivity(High Level)
550mV-8V
Bass Boost
0-12dB
Subsonic Filter
10Hz-50Hz
Crossover LPF
50Hz-220Hz
Crossover HPF
N/A
Bass Remote
Yes
Clip Indication
N/A

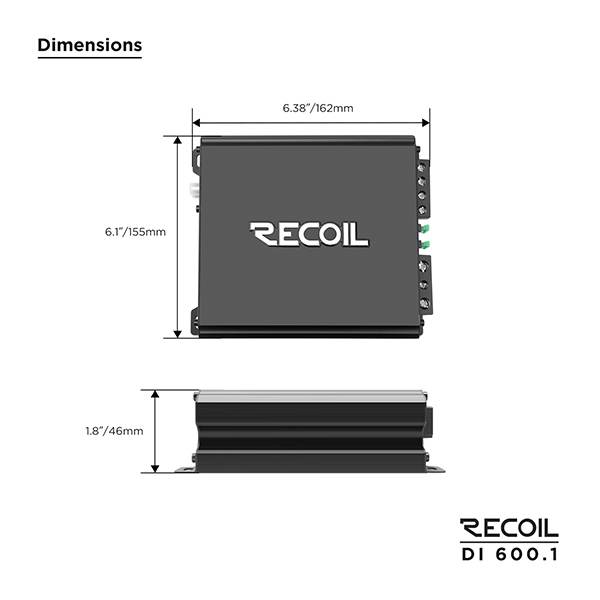

Dimensions
7.5"x6.1"x1.8"(190x155x46)
Fuse Rating
25A x 2
Voltage Protection
9V-16V, Self-recovery
Over-Load Protection
Yes, Self-recovery
Over-Current Protection
Yes, Self-recovery
Speaker Wire Short Circuit Protection
Yes, Self-recovery
Thermal Protectoin
Yes, Self-recovery
DC Power Reverse Protection
Yes
Speaker Wire/Power Wire Mix Protection
Yes, Restart recovery
